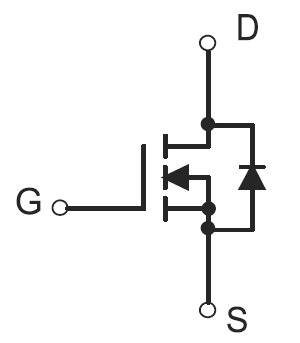

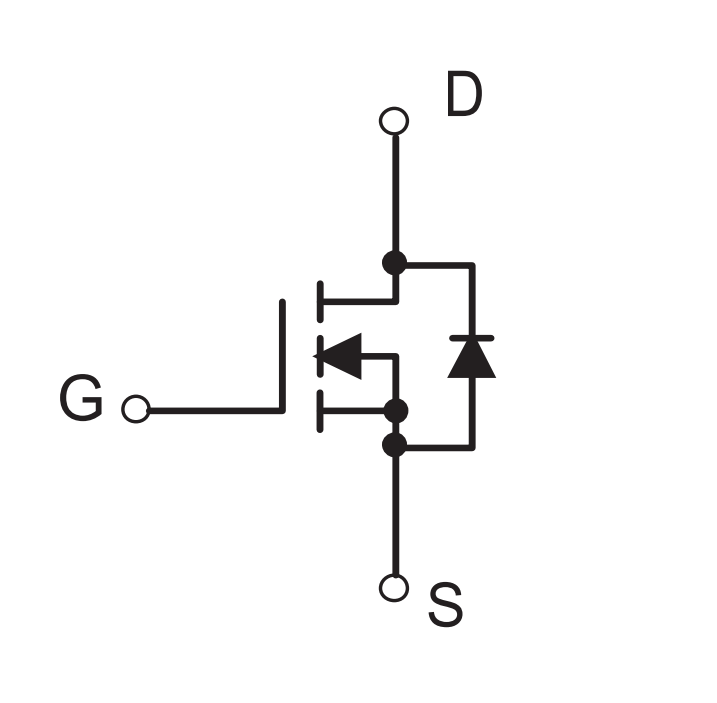

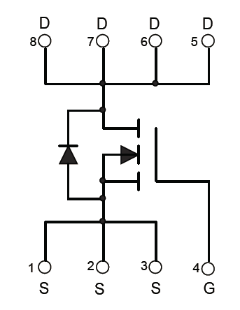

| Part Number | Download | Circuit |
ESD(YES/NO) |
VDS(V) |
VGS(V) |
ID(A) |
VGS(TH)(V) |
RDS(mΩ)@VGS(10V Typ) |
RDS(mΩ)@VGS(10V Max) |
RDS(mΩ)@VGS(4.5V Typ) |
RDS(mΩ)@VGS(4.5V Max) |
Package |
| GPT028N10NTH |
 |
 |
No
|
100
|
±20
|
195
|
3
|
2.90
|
3.50
|
-
|
-
|
TO-263-2L |
| GPT032N10NTH |
|
 |
No
|
100
|
±20
|
197
|
3
|
3.50
|
4
|
-
|
-
|
TO-263-2L |
| GPT024N10NTP |
|
 |
No
|
100
|
±20
|
240
|
3
|
2.20
|
3.20
|
-
|
-
|
TOLL |
| GPT027N10NTD |
|
 |
No
|
100
|
±20
|
246
|
3.10
|
2.50
|
3.50
|
-
|
-
|
TO-247-3L |
| GPT024N10NTBL |
|
 |
No
|
100
|
±20
|
257
|
3
|
2.70
|
3.50
|
-
|
-
|
TO-220-3L-C |
| GPT024N10NTH |
|
 |
No
|
100
|
±20
|
257
|
3
|
2.70
|
3.50
|
-
|
-
|
TO-263-2L |
| GPT021N10NTB |
|
 |
No
|
100
|
±20
|
265
|
3
|
2.30
|
3
|
-
|
-
|
TO-220-3L-C |
| GPT023N10NTB |
|
 |
No
|
100
|
±20
|
260
|
3
|
2.60
|
3
|
-
|
-
|
TO-220-3L-C |
| GPT016N10NTD |
|
 |
No
|
100
|
±20
|
280
|
3
|
1.60
|
2
|
-
|
-
|
TO-247-3L |
| GPT021N10NTP |
|
 |
No
|
100
|
±20
|
285
|
2.90
|
2.10
|
2.50
|
-
|
-
|
TOLL |
| GPT015N10NTP |
|
 |
No
|
100
|
±20
|
290
|
3.10
|
1.50
|
2.10
|
-
|
-
|
TOLL |
| GPT016N10NTP |
|
 |
No
|
100
|
±20
|
304
|
3
|
1.60
|
2.10
|
-
|
-
|
TOLL |
| GPT018N10NTQ |
|
 |
No
|
100
|
±20
|
320
|
2.90
|
1.78
|
2
|
-
|
-
|
TO-263-7L |
| GPT014N10NTP |
|
 |
No
|
100
|
±20
|
365
|
3
|
1.50
|
1.80
|
-
|
-
|
TOLL |
