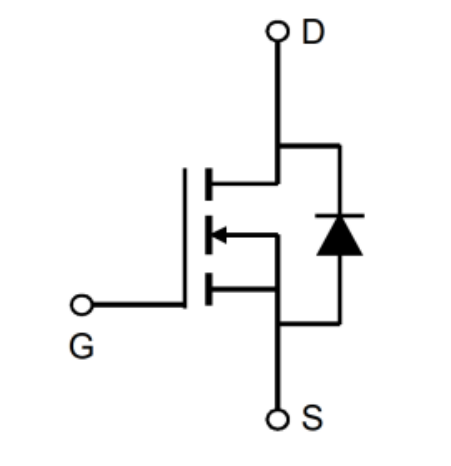

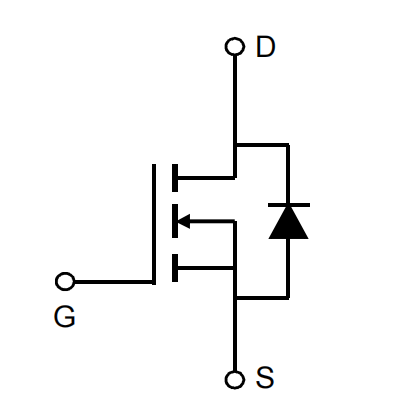

| Part Number | Download | Circuit |
ESD(Yes/No) |
VDS(V) |
VGS(V) |
ID(A) |
VGS(TH)(V Typ) |
RDS(mΩ)@VGS(10V Typ) |
RDS(mΩ)@VGS(10V Max) |
RDS(mΩ)@VGS(4.5V Typ) |
RDS(mΩ)@VGS(4.5V Max) |
Package |
| GP02N60TF |
|
|
No | 600 | ±30 | 2 | 3.2 | 3900 | 5000 | - | - | TO-252-2L |
| GP02N60TC |
|
|
No | 600 | ±30 | 2 | 3.2 | 3600 | 5000 | - | - | TO-220-3L-F |
| GP02N65TF |
|
|
No | 650 | ±30 | 2 | 3 | 4600 | 6000 | - | - | TO-252-2L |
| GP02N65TC |
|
|
No | 650 | ±30 | 2 | 3.1 | 4400 | 6000 | - | - | TO-220-3L-F |
| GP04N65TF |
|
|
No | 650 | ±30 | 4 | 3 | 2100 | 2400 | - | - | TO-252-2L |
| GP04N65P |
|
|
No | 650 | ±30 | 4 | 3 | 2100 | 2400 | - | - | TO-251-3L |
| GP04N65F |
|
|
No | 650 | ±30 | 4 | 3 | 2100 | 2400 | - | - | TO-220F-3L |
| GP07N65TF |
|
|
No | 650 | ±30 | 7 | 3.2 | 1200 | 1700 | - | - | TO-252-2L |
| GP07N65TC |
|
|
No | 650 | ±30 | 7 | 3.2 | 1200 | 1700 | - | - | TO-220-3L-F |
| GP10N65TC |
|
|
No | 650 | ±30 | 10 | 3.4 | 800 | 1200 | - | - | TO-220-3L-F |
| GP12N65TC |
|
|
No | 650 | ±30 | 12 | 3.2 | 620 | 800 | - | - | TO-220-3L-F |
| GP16N65TC |
|
|
No | 650 | ±30 | 16 | 3.6 | 460 | 600 | - | - | TO-220F |
| GP07N80TC |
|
|
No | 800 | ±30 | 7 | 3.5 | 1400 | 1800 | - | - | TO-220F-3L |
| GP09N90TD |
|
|
No | 900 | ±30 | 9 | 3.7 | 1200 | 1600 | - | - | TO-247-3L |
