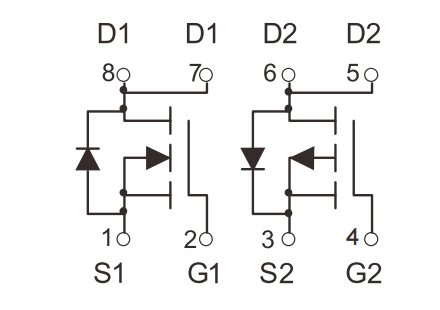

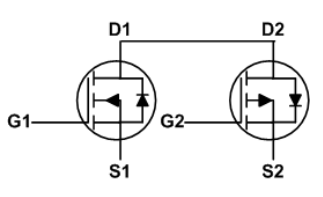

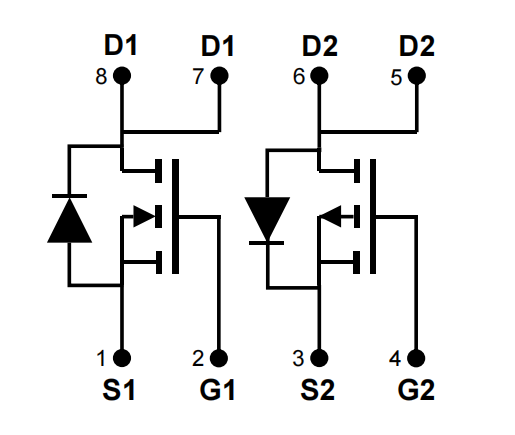

| Part Number | Download | Circuit |
Type |
Process |
ESD(Yes/No) |
VDS(V) |
VGS(V) |
ID(A) |
VGS(TH)(V) |
RDS(mΩ)@VGS(10V Typ) |
RDS(mΩ)@VGS(10V Max) |
RDS(mΩ)@VGS(4.5V Typ) |
RDS(mΩ)@VGS(4.5V Max) |
Package |
| GP30NP07P56 |
 |
 |
N+P
|
Trench
|
No
|
30
|
±20
|
45
|
1.6
|
7.50
|
9.50
|
10.50
|
13.50
|
PDFN5×6-8L |
| GP30NP36LNB |
|
 |
N+P
|
Trench
|
No
|
30
|
±20
|
16
|
1.7
|
22
|
30
|
31
|
42
|
PDFN3.3×3.3-8L |
| GP30NP36LNB |
|
 |
N+P
|
Trench
|
No
|
-30
|
±20
|
-16
|
-1.5
|
34
|
44
|
46
|
65
|
PDFN3.3×3.3-8L |
| GPM380NP04NTG |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
18
|
1.7
|
17
|
26
|
23
|
39
|
TO-252-4L |
| GPM380NP04NTG |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-17
|
-2.1
|
42
|
55
|
68
|
86
|
TO-252-4L |
| GP40NP37Q |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
9
|
1.6
|
16
|
21
|
27
|
32
|
SOP8 |
| GP40NP37Q |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-7
|
-1.6
|
31
|
37
|
39
|
47
|
SOP8 |
| GPM420NP04LQA |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
8
|
2.1
|
19
|
36
|
28
|
56
|
SOP8 |
| GPM420NP04LQA |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-6
|
-1.5
|
44
|
51
|
72
|
81
|
SOP8 |
| GPM680NP04LQA |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
6
|
1.6
|
26
|
35
|
31
|
45
|
SOP8 |
| GPM680NP04LQA |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-4
|
-1.5
|
68
|
88
|
82
|
100
|
SOP8 |
| GPM340NP04NTG |
|
|
N+P
|
Trench
|
No
|
40
|
±20
|
30
|
1.6
|
12
|
18
|
18
|
32
|
TO-252-4L |
| GPM340NP04NTG |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-28
|
-1.6
|
24
|
35
|
33
|
48
|
TO-252-4L |
| GPM10DNP04LQA |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
4
|
2
|
44
|
57
|
61
|
79
|
SOP8 |
