Part Number | Download | Circuit |
ESD(Yes/No) |

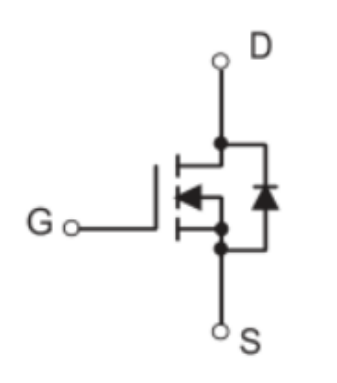

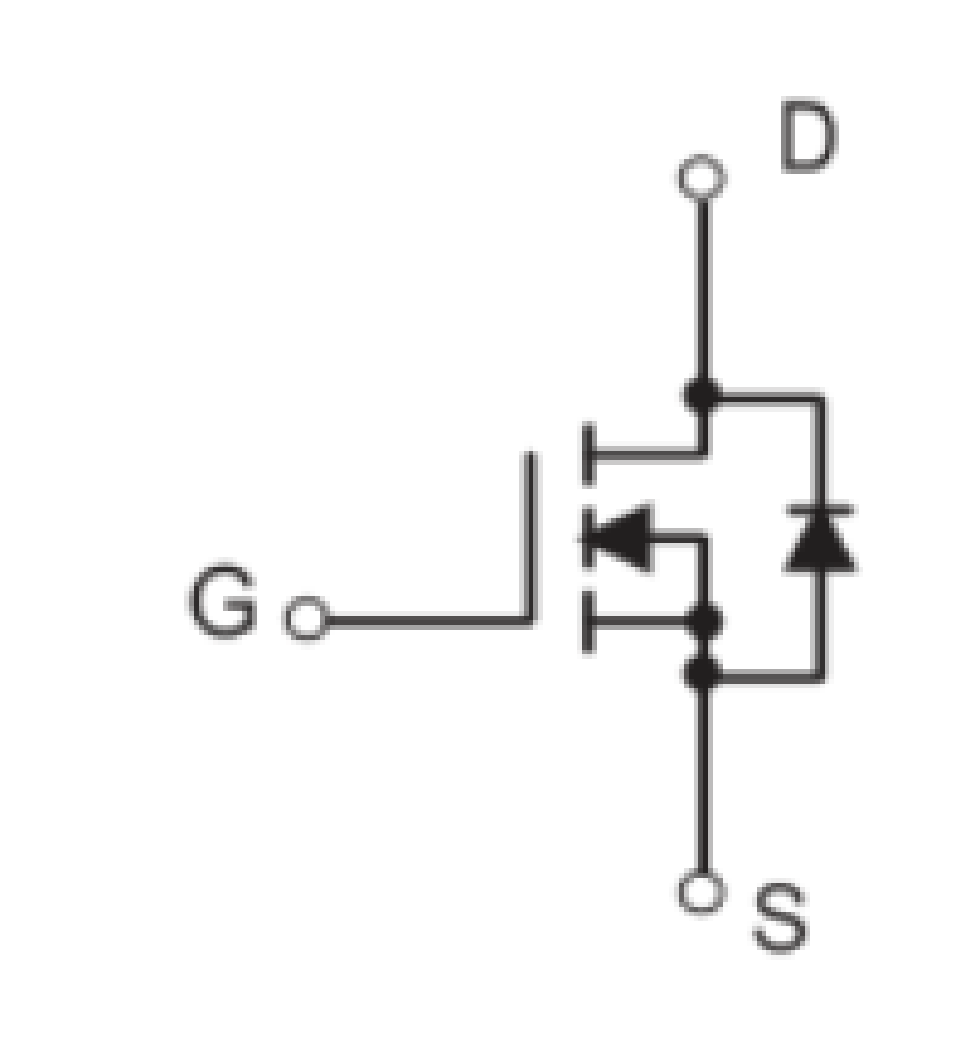

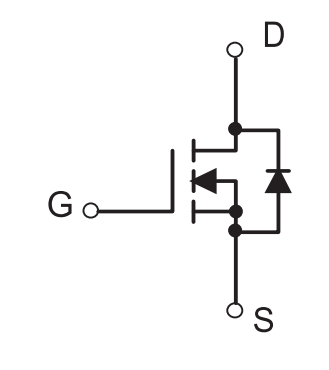

VDS(V) |
VGS(V) |
ID(A) |
VGS(TH)(V) |
RDS(mΩ)@VGS(10V Typ) |
RDS(mΩ)@VGS(10V Max) |
RDS(mΩ)@VGS(4.5V Typ) |
RDS(mΩ)@VGS(4.5V Max) |
Package |
GPM014N03LTB |
![]() |
![]() |
No
|
30
|
±20
|
165
|
1.5
|
1.8
|
2.40
|
2.40
|
3.50
|
TO-220-3L-C |
GPM070N03LTE |
![]() |
![]() |
NO
|
30
|
±20
|
50
|
1.5
|
6.5
|
8.50
|
7.50
|
12
|
TO-251-3L |
GPM080N03LTF |
![]() |
![]() |
No
|
30
|
±20
|
44
|
1.5
|
8
|
12
|
13
|
19
|
TO-252-2L |
GPM100N03LTF |
![]() |
![]() |
No
|
30
|
±20
|
30
|
1.4
|
11
|
13
|
14
|
22
|
TO-252-2L |
GP30N07D |
![]() |
|
No
|
30
|
±20
|
47
|
1.5
|
5.7
|
7.30
|
8.80
|
13
|
TO-252-2L |
GPM070N03LTF |
![]() |
|
No
|
30
|
±20
|
60
|
1.6
|
5.5
|
7
|
7.50
|
11.50
|
TO-252-2L |
GP30N06LD |
![]() |
![]() |
No
|
30
|
±20
|
90
|
1.7
|
3.7
|
6
|
6
|
9
|
TO-252-2L |
GP30N06D |
![]() |
|
No
|
30
|
±20
|
90
|
1.7
|
3.7
|
6
|
6
|
9
|
TO-252-2L |
GPM041N03NTF |
![]() |
|
No
|
30
|
±20
|
100
|
1.5
|
3.1
|
4.10
|
4.60
|
6.50
|
TO-252-2L |
GP30N04D |
![]() |
|
No
|
30
|
±20
|
110
|
1.7
|
4
|
5
|
5.90
|
7.80
|
TO-252-2L |
GPM025N03NTF |
![]() |
|
No
|
30
|
±20
|
140
|
1.5
|
2.5
|
3.10
|
2.90
|
3.80
|
TO-252-2L |
GPM021N03NTF |
![]() |
![]() |
NO
|
30
|
±20
|
150
|
1.5
|
1.8
|
2.10
|
2.20
|
2.90
|
TO-252-2L |
GPM014N03LTF |
![]() |
![]() |
No
|
30
|
±20
|
165
|
1.5
|
1.6
|
2.20
|
2.10
|
3.30
|
TO-252-2L |
GPM025N03LTH |
![]() |
![]() |
No
|
30
|
±20
|
140
|
1.5
|
2.5
|
3.10
|
2.90
|
3.80
|
TO-263-2L |
